Low Speed Vehicle Battery 51.2V15Ah
Low Speed Vehicle Battery 51.2V15Ah

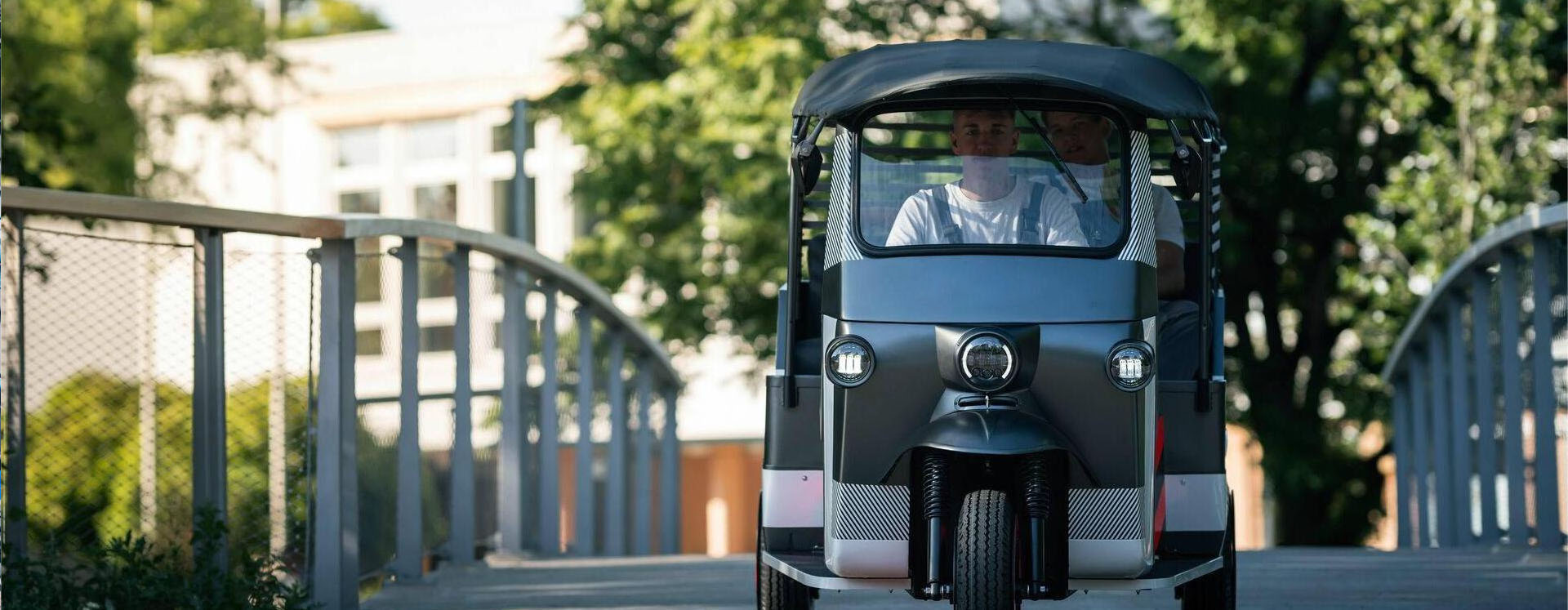

Provides power to low speed vehicles like 2/3 wheelers.
Designed to be "Deep-cycle" that means the battery system can be discharged until almost empty, voltage nominal 51.2V and energy is 768Wh.
Due to much higher energy density, voltage capacity, and lower self-discharge rate, using Lithium Ion battery replacement for lead acid is becoming a more and more popular choice. RAJA provides high-quality lithium-ion battery replacement for lead acid at a competitive price, A+ class LiFePO4(Lithium Iron Phosphate) cells, up to 3500cycles(8-10years).
Use Manual
-
High cycle life
3500 cycles @80% DoD for the effectively lower total cost of ownership.
-
Quickly recharge
Save time and increase productivity with fewer downtime thanks to superior charge/discharge efficiency.
-
Longer service life
Low maintenance batteries with stable chemistry. Easily monitor the state of charge (SoC) of smart models.
-
Built-in circuit protection
Battery Management Systems (BMS) are incorporated against abuse.
-
Better storage
Up to 6 months thanks to its extremely low self-discharge (LSD) rate and no risk of sulphation.
-
Light Weight
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
-
LiFePO4
A+ Tier Cells
-
51.2V
Voltage
-
768kWh
Energy
-
≥3500
Battery Cycles
-
5years
Warranty
| 51.2V15Ah- EV Battery- Low Speed Vehicles | |||
| SPECIFICATIONS | |||
| Rated Capacity | 15Ah | ||
| Rated Energy | 768Wh | ||
| Nominal Voltage | 51.2V | ||
| Dimension | 173*145*234mm | ||
| Weight | approx. 7.5kg | ||
| Charge Cut-off Voltage | 58.4V | ||
| Discharge Cut-off Voltage | 40V | ||
| Rated Charge Current | 10A | ||
| Rated Discharge Current | 15A | ||
| Rated Discharge Current in 15S | 50A | ||
| Communication | CAN | ||
| Port of Charge & Discharge | Work Independently | ||
| Protection Level | IP65 | ||
| Working Temperature | Charge: 0～45℃ | ||
| Discharge: -20～60℃ | |||
| Storage Temperature | 10~45℃ | ||
| State of Charge(SOC) before Shipment | 30%~50% | ||
| PROTECTION PARAMETERS | |||
| Over Charge | Single Cell Protection Voltage | 3.65V | |
| Total Protection Voltage | 58.4V | ||
| Measures | Output Break | ||
| Over Discharge | Single Cell Protection Voltage | 2.5V | |
| Total Protection Voltage | 40V | ||
| Measures | Output Break | ||
| Over Current | Charge Protection Current | 25A | |
| Discharge Protection Current | 55A | ||
| Measures | Output Break | ||
| Temperature | Top Discharge Temperature | 65℃ | |
| Measures | Output Break | ||
