12.8V Lead Acid replaced by LiFePO4

LiFePO4 Battery 12.8V replacing Lead Acid battery.

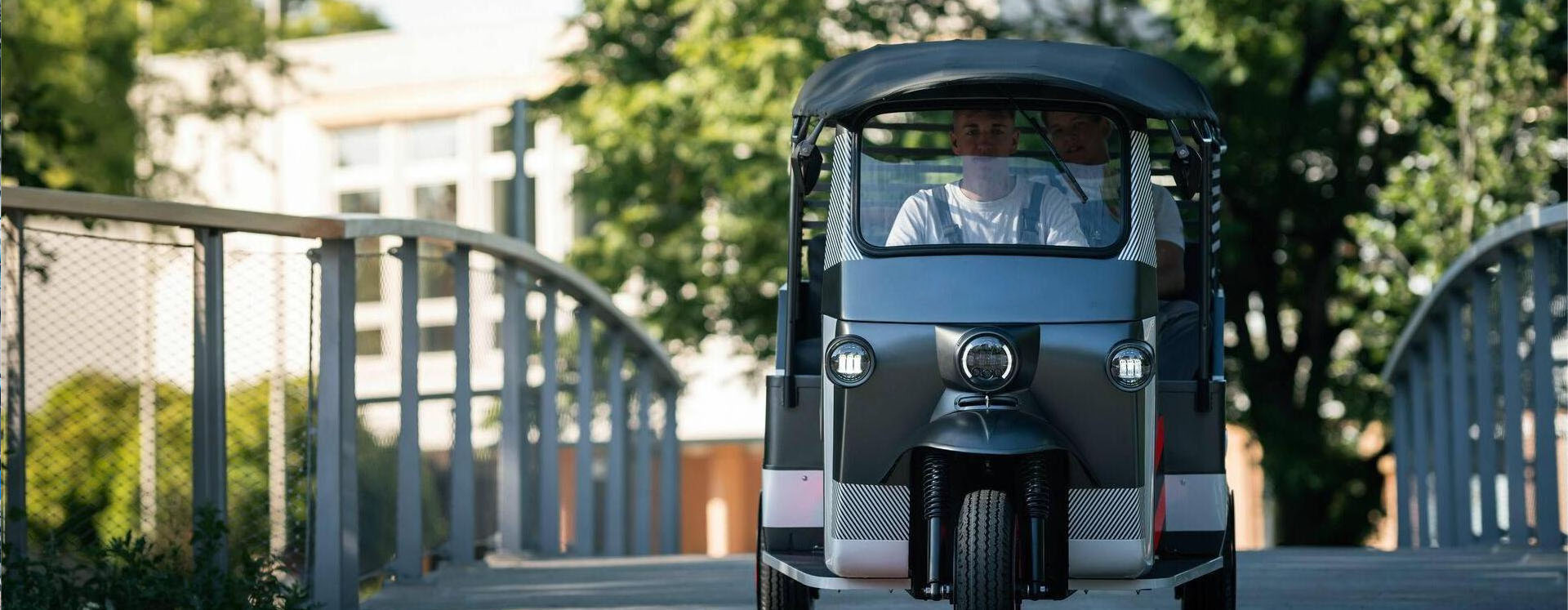

For 2 or 3 wheels or other low speed veicles.

Designed to be "Deep-cycle" that means the battery system can be discharged until almost empty, voltage nominal 12.8V and capacity range from 50Ah to 300Ah.

12.8V Lead Acid replaced by LiFePO4
>
<
Product Features
  • Safe & Endurable

    Self-developed BMS provides the ultmost protection to battery, compatible with major Inverter brands.

  • Smart BMS

    The battery detection unit is installed in the battery pack, which can accurately and real-time detect the battery voltage, temperature, capacity and other conditions, which can fully improve the safety of the product.

  • 10 Years Design Life

    A-class battery cells, with the protection of BMS, the system can deliver up to 10 years servicelife.

  • Reliable

    Longer lifespan Laser Welding Rigid tests before shipment.

  • Adaptable

     Self-heating function, consistent and efficient at -20 to 50 degrees.

  • Intelligent Monitoring

    Monitor the battery status at any time on the APP, while the LCD window displays real-time data, battery charging, discharge and other data at a glance.

Special Features
  • LiFePO4

    A+ Tier Cells

  • 12.8V

    Voltage

  • 50Ah-300Ah

    Capacity

  • ≥3500

    Battery Cycles

  • 5years

    Warranty

Specifications

Technical Specifications

NO.

Rated

voltage

Rated

capacity(Ah)

Size(mm)

Charging

current(A)

Discharging

current(A)

Operating voltage

range(V)

Operation

temperature range(℃)

Weight(kg)

Terminal

1

12.8V

50Ah

195*165*168

25

50









Charging upper

limitvotage 146V

Lower discharge

limityoltage 10V









Charging temperature range:0~45°℃

Discharge temperature range20~55℃

7.7

M6

2

12.8V

100Ah

306*168*210

50

100

12.7

M8

3

12.8V

120Ah

330*173*235

50

100

15.4

M8

4

12.8V

136Ah

405*173*230

50

100

17.4

M8

5

12.8V

150Ah

522*240*218

50

100

19.2

M8

6

12.8V

200Ah

522*240*218

50

100

24

M8

7

12.8V

250Ah

522*240*218

50

100

32

M8

8

12.8V

300Ah

522*240*218

50

150

38.4

M8
